Collette Contracting: Renovations to Building 609, U.S. Military Academy, West Point, NY

Renovations to Building 609
U.S. Military Academy, West Point, NY

PAST PERFORMANCE & REFERENCE SHEET

Project Name & Location:

Renovations to Building 609
U.S. Military Academy, West Point, NY

Client Name & Address:

Directorate of Contracting
U.S. Military Academy
681 Hardee Place, West Point, NY

Contract Number:

W911SD-04-C-0009

Description of Contract Work:

6,500 square feet of repairs, restoration, renovation & new construction project, inclusive of:

- Exterior Demolition
- Structural Repairs
- Asbestos Abatement & Monitoring
- Site works
- Underground utilities & drainage
- New Concrete & Masonry works
- Waterproofing
- Masonry repairs, restoration & re-pointing
- Doors, Windows and hardware
- Toilet partitions & accessories
- Sprinkler System
- HVAC, including digital controls

- Interior Demolition
- Shoring
- Landscaping
- Rock excavation
- Asphalt paving
- Structural steel
- Roofing
- Gypsum board partitions
- Architectural finishes
- Ceramic, quarry tile, carpeting & athletic flooring
- Plumbing
- Electrical Works and Fire Alarm System

The works include providing all required site, civil, architectural, specialties, fire protection sprinkler system, electrical and fire detection & alarm system, plumbing works, heating, air conditioning & ventilating systems with digital controls, and underground storm, sanitary and electrical distribution system to renovate and upgrade of a historical building neglected over the years, now to be used by the Academy� s Athletic Department, and a new roofing system to be used as a promenade by the general public.

Project highlights of renovating this historic building included structural repairs to existing concrete, steel and masonry load bearing horizontal and vertical members, granite and limestone repairs, stone cleaning & re-pointing, excavation & shoring to waterproof exterior wall one floor below grade. Also, being located next to a major road artery and pedestrian walkway passing through the academy, this challenging project required continuous traffic direction and safety implementation.


Window/Wall Removal for New Door @ 2nd Fl.	Existing window removed @ Men's Bathroom

Concrete beam structural repairs, before and after

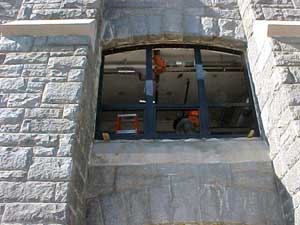

Granite & Limestone before and after repairs, restoration, re-pointing and new windows being installed

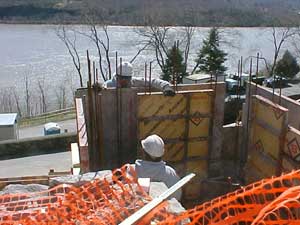

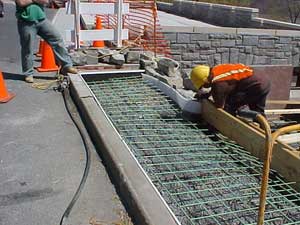

Concrete Works

First Floor, before and during renovations

Second Floor Hallway, before and during renovations

Existing roof structure	Roof concrete demolition

First layer of new roof waterproofing	New concrete wearing surface over the new roofing

Hot Water Heater Package @ First Floor	AC-1 @ Mechanical Room, with seismic bracing

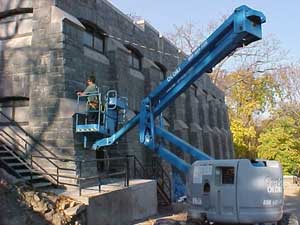

Granite & Limestone repair & restoration	Precast stone coping with copper flashing being installed

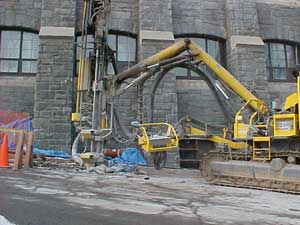

Rock excavation	Plumbing rough-in

HVAC Ductwork installation	Sprinkler System Control Assembly
